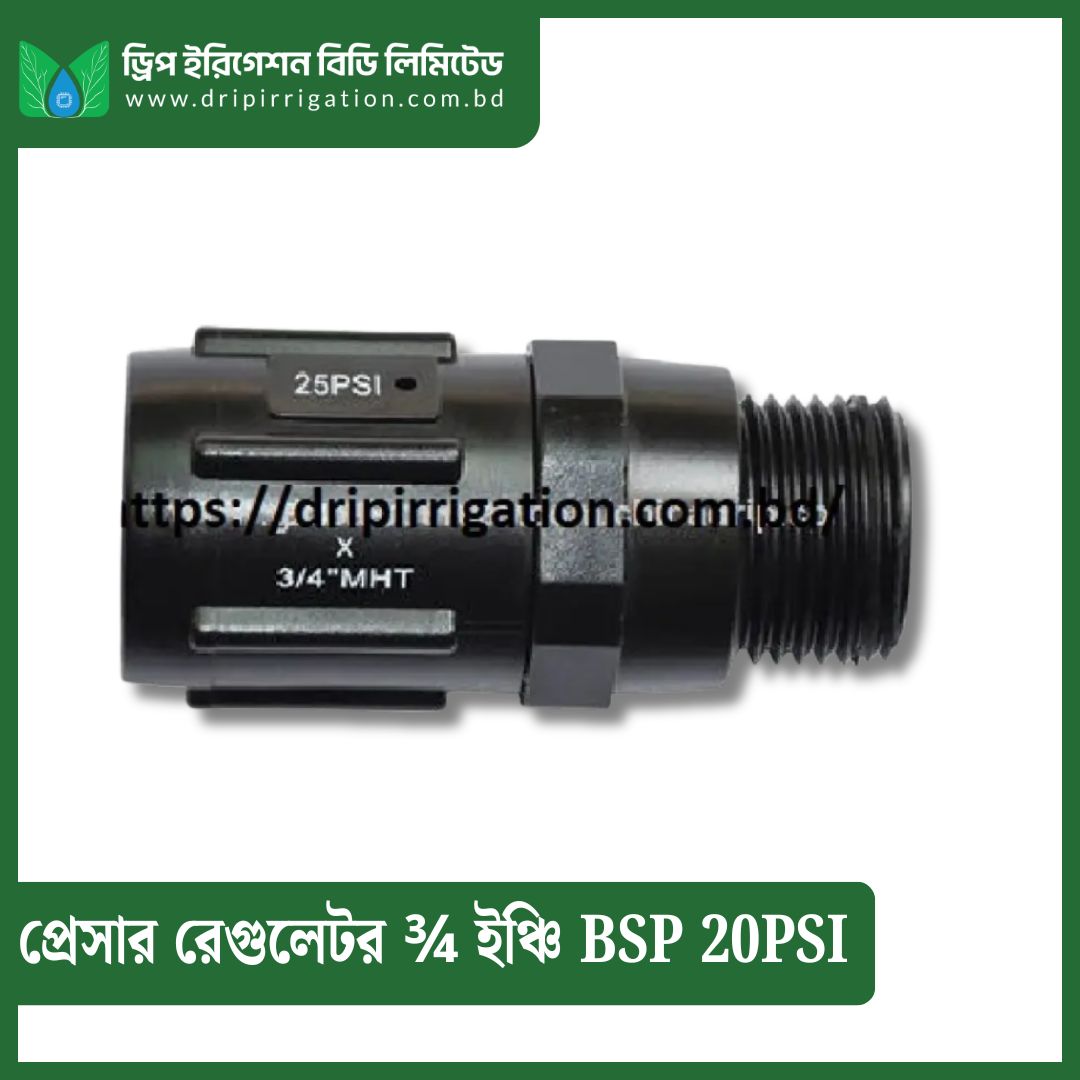

Pressure Regulator, 3/4″ BSP, 20PSI
Remain the same pressure of outlet envn if the pressure of inlet is changed greatly or the flowing of outlet is variable.
Fixed inductive diaphragm inside, reaction sensitivity and High accuracy of Pressure regulation.
Large flowing channel without ratainer, Smooth surface inside with low friction.
Produced by Reinforced plastic material with excellent hydraulic and mechanical function.
Working Pressure: 3/4″ Low Flow: 20-120PSI (1.3-8.5Bar), 3/4″ High Flow: 20-150PSI (1.3-10Bar), 1″: 20-150PSI (1.3-10Bar).
Installation after filter to protect the drip system or microsprinler damaged by high pressure.
Also Suitable to be fixed before sprinker for pressure compensation and uniform flowing.
Five type flowing available 15, 20, 25, 30, 40PSI to meet different requirement.
